Metal Laboratory Cabinets /
Laboratory Casework & Countertops

– Designed to meet your Laboratory Needs…

Click to download Brochure

Click to download Installation Instructions

Need Help with Floor Plan Layout ??
Take a Look at Our Layout Samples:

L-Shaped Laboratory Layout with 45 Degree Corner Cabinet
How 45-Degree Corner Cabinet is Installed

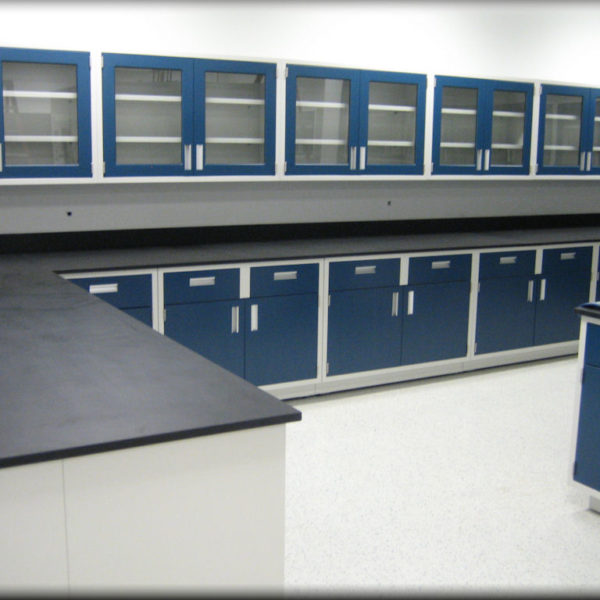

L-Shaped Laboratory Layout with No Corner Cabinet
Typical L-Shaped Layout w/ No Corner Cabinet

Many Laboratory Cabinet Styles to Choose From…

Finish Options (Two-Tone-Color Available):

Light Almond Ivory Beige Off White Platinum Matte Grey Black
Lt. Almond Ivory Beige Off White Platinum Matte Grey Black
Dark Taupe Green Light Blue Sea Blue Deep Blue Burgundy White
Dark Taupe Green Light Blue Sea Blue Deep Blue Burgundy White
  • Traditional Steel Laboratory Cabinet Features:
    • The Most Popular Cabinets for Industrial & Laboratory Use…
    • Moreover, Our added feature of being Modular and able to convert deep drawers to shallow drawers (and vice-versa) provides extra flexibility for the user.
    • Flush front construction.
    • Removable backs.  Therefore, access to utilities is made easier for quick changes.
    • Doors and drawer heads are “double pan” construction and sound deadened.
    • Flush Aluminum Pulls (Other options available, including Bar Style & Custom)
    • Most Noteworthy, the cabinets are made with a 18-gauge front frame assembly, interlocked and welded for maximum strength. (Not lighter 20 Gauge Steel like most others)
    • Stainless Steel Five (5) Knuckle Institutional Door Hinges, therefore providing the most durable door connection.
    • Full extension, ball bearing, plated drawer slides.
    • Panned Bottoms are removable for easy cleaning of spills beneath cabinets.
    • Adjustable Leveling Feet.  As a result, installation is much easier.
    • Shelves (if applicable) are adjustable on 1″ centers.
    • The finishes are of the highest laboratory quality. In other words, the inner and outer faces of each door and drawer panel along with the cabinet are painted with the latest in baked on corrosion resistant powder coat paint technology.
    • Above all, you will not find a better quality steel cabinet line with a feature list this lengthy.
    • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD /
      Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More…

CHOOSE CABINETS BELOW TO CREATE YOUR LAYOUT

NOTE: * = Required
  • Base Metal Cabinet(s):


    NOTE: Base cabinets are typically 22" Deep (Front-to-Back)
    To Create Standard 30"Deep Top, Cabinets are moved forward from the wall to create a utility chase
    (Typically 7" - i.e. 22"+7"=29" Overall Depth) using 7" Closure Panels Below to finish open ends of cabinet runs.
    Other overall depths possible, ranging from 22" and up.

  • Doors Only 200 Series
  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Sink Cabinet 20S Series
  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • (2) Doors & (2) Drawers 220 Series
  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • (2) Doors & (1) Drawer 210 Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • (1) Door & (1) Wide Drawer & (_) Drawers 140B Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • (1) Door-Drawer & (_) Drawers 150 Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • (1) Door & (_) Drawers 140A Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Split Drawer Unit 080 Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • (2) Drawers & (_) Wide Drawers 050 Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • All Drawer Unit 040 Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Small Door Only 100-N Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Small Sink Cabinet 10S-N Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Small (1) Door & (1) Drawer 110-N Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Small All Drawer Unit 040-N Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Open Front 000 Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...

  • Depth:
    Maximum (8) total trays for 35"high cabinets
    Maximum (6) total trays for 30"high cabinets
  • Height:
    Full perimeter, 2" high containment curbs, 19-1/.2" depth, full extension slides.
  • CORNER CABINET STYLES:

  • Chamfered Corner Cabinet BC10S Series

  • For use with 22" deep cabinets.
    Overall Cabinet Size is - 32" x 32" (39"x39" w/ 7"utility chase).
    Door width is appx. 14" (10"x10" chamfered corner).
    See Sample Floorplan Layout Link at Top of this Page.
  • Hidden Corner Cabinet w/ Door Only 100-SP Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...
  • Hidden Corner Cabinet w/ Door & Drawer 110-SP Series

  • DEPTH: 22" (Cabinet) + 7"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...
  • SPECIALTY CABINET STYLES:

  • Chemical / Base Storage Cabinet 200-AS Series

  • DEPTH: 18" (Cabinet) + 11"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...
  • Flammables Storage Base Cabinet 200-FS Series

  • DEPTH: 18" (Cabinet) + 11"utility chase = 29" (Overall) w/ 7" Closure Panels Below.
    NOTE: For 30"Deep Top - Other Filler Depths Available...
  • Island End Sink Unit 20SI Series

  • DEPTH: 22" (Cabinet)
  • TALL STORAGE CABINET STYLES:

  • Tall Storage Cabinet - Swinging Metal Doors (2SH) Series

  • RDM Industrial Products Swinging Metal Doors (2SH) Series
  • Tall Storage Cabinet - Sliding Metal Doors (2SS) Series

  • RDM Industrial Products Sliding Metal Doors (2SS) Series
  • Tall Storage Cabinet - Swinging Glass Doors (2GH) Series

  • RDM Industrial Products Swinging Glass Doors (2GH) Series
  • Tall Storage Cabinet - Sliding Glass Doors (2GSF) Series

  • RDM Industrial Products Sliding Glass Doors (2GSF) Series
  • Tall Storage Cabinet - Open Front Cabinet (000) Series

  • RDM Industrial Products Open Front Cabinet (000) Series
  • KNEE SPACES (OPEN SEATING AREAS):

  • Knee-Hole Space
  • Includes 4-1/2" High Rectangular Apron & Rear Modesty Panel
  • Knee-Hole w/ Single Drawer
  • Similar to Above...
  • Knee-Hole w/ (2) Drawer(s)
  • Similar to Above
  • Knee-Hole w/ (3) Drawer(s)
  • Similar to Above
  • END PEDESTAL - Use at end of Cabinet Run where Knee Space is Desired
  • NOTE: Standard Width is 2"
  • NOTE: Standard Depth is 29" for 30" Deep Tops - 28" Depth for use on Double-Sided 1" Overhang.
  • BASE CABINET FILLER / CLOSURE PANELS:


  • REAR - Closure Panel (Cabinet-to-Wall) Use at Rear of Base Cabs Above
  • FRONT / END - Closure Panel (Cabinet-to-Wall) OR (Cabinet-to-Cabinet) Includes Toe Kick
  • CORNER - Filler Panel (L-Run Junction)
  • Comes with Toe Kick Filler that must be cut to size and shaped in field by installer(s).
  • ISLAND - Closure Panel (Cab-to-Cab) - Use at Rear of Base Cabinets that are Back-to-Back
  • KNEE SPACE - Closure Panel - Use at Back Side of Knee Space Areas for Privacy
  • Upper Metal Cabinet(s):

  • Open Shelving
  • Swing Steel Doors
  • Swing Glass Doors (Steel Framed)
  • Sliding Metal Doors
  • Sliding Glass Doors (Frameless)
  • Sliding Glass Doors (Steel Framed)
  • Pass-Thru (Sliding Glass)
  • Pass-Thru (Open Shelving)
  • Corner Upper (Choose Door Style)
  • Overall Cabinet Size is 25-11/16" x 25-11/16"
    Door width is appx. 18"
    Available for use with 13" or 16" Cabinets
  • UPPER CABINET FILLERS:

  • FRONT - Closure Panel for Upper Cabinets
  • UPPER & LOWER CAPS (Optional) Sold as Set for Upper Cabinets
  • Set of Upper & Lower
  • STEP 2 - SELECT OPTIONS BELOW…


  • NOTE: Standard Finishes (No additional charge) include Desert Sand (Beige), Cool White (Eggshell White) & Smoke (Light Grey)
  • NOTE: Selecting Optional Second Color Above for Door / Drawer Panels Adds to Price $$...
    Swinging Double-Doors have One Lock & Catch. Sliding Doors use Plunger-Style Lock NOTE: All Locks Keyed Alike unless requested otherwise. Specify Special Needs Below in Additional Comments Section...
  • Chair Options:
  • 1P - Tubular Base, Concave Seat, Backrest with Lumbar Support1Q - Cast Aluminum Base, Concave Seat, Backrest with Lumbar Resort
    Note: No Worries - We will suggest options according to the environment you select above...
