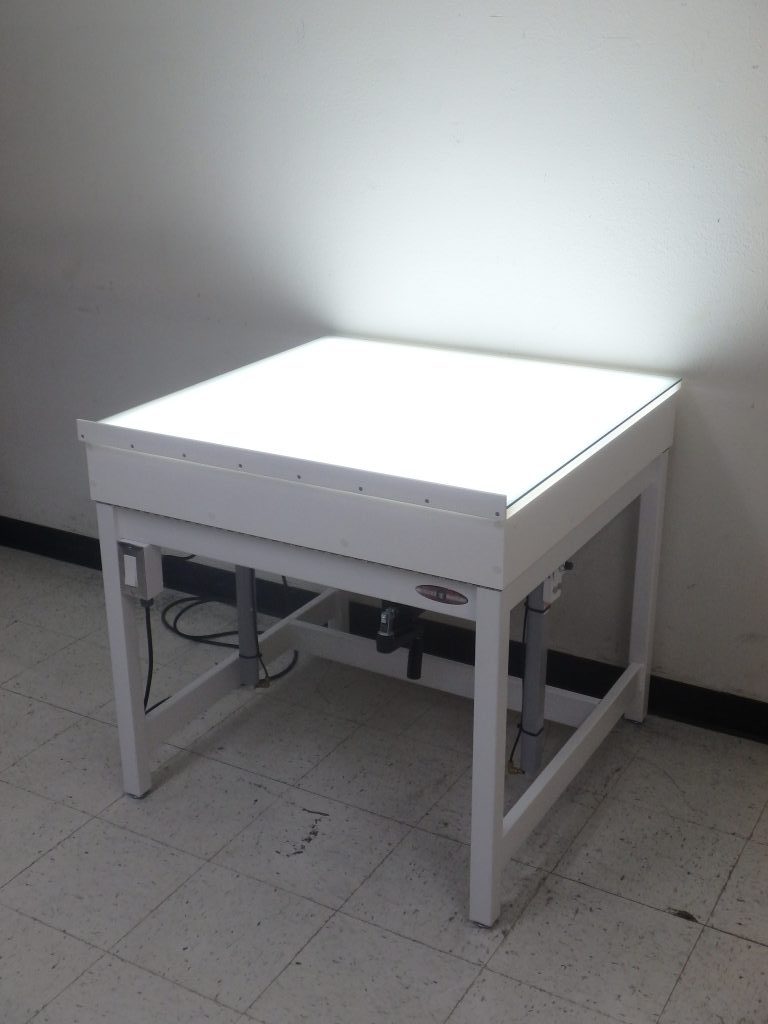

Table Model A-109P-LT – Illuminated Top Light Tables / Inspection Table
– Can be applied to most of our table styles…
Models
We offer different table types and models for interested parties, including:
- Deluxe Light Table with Hydraulic Tilting Top and Optional Lighted Panel
- Standard Light Table Shown with Optional Casters, Hydraulic Lift & Hydraulic Tilt
- Small Inspection Cart with Light Panel Shown with Optional Casters, Containment Curbs & Hydraulic Lift
- Deluxe Light Table with Optional Bottom Access Service Panel
- Tilting Light Panel that Tilts from 0-90 Degrees
- Many Other Options
Features
Our Light Inspection Tables can be used as drafting light tables can be equipped with optional features and qualities, such as:
- Adjustable Height
- Leg Pins or Hydraulic Lift
- Tilting Top
- Manual Brackets or Hydraulic Lift
- Increased Lighting Output
- Colored Lighting Output
- Customizable features, depending on your specific preferences or needs.
Indeed, when it comes to light tables for drawing or other purposes, RDM is the name to call.
Remember: We are here to help you out. And if you want to enjoy durability, features and many other advantages from your light tables (or other furniture pieces)—give us a call. You can rest assured that we will deliver on what you need.
Standard Light Table Table Features…
- Our Light Tables are Designed for Heavy-Duty Long-Term Usage
- Standard Work Surface is a Translucent White Plastic Surface
- Tempered Glass Top Cover available as an option, typically 1/4″
- Typically rests directly onto lighted plastic surface.
- Standoff option available for thicker glass top covers
- Thicker Glass Top Covers available – 3/8″thick min. recommended for smaller tables (36×48 or less)
- Frosted Glass is an Optional Alternative, but much more expensive
- Lighted Area can be sized to match your specific needs (Multiples of 12″ for width)
- Tempered Glass Top Cover available as an option, typically 1/4″
- LED Lighting with Remote Dimmer Switch – We target
- All Lighting Components and Power Units are mounted on the inside of the light box.
- Can be Customized to accommodate any special needs…
- Other Styles Available – See Our Light Tables page…
- Standard & Custom Sizes – We are the manufacturer…
- Feel free to specify your custom dimension requirements or choose from the following…
- “A” – WIDTH (Right-to-Left) 30″, 36″, 48″, 60″, 72″, & 96″
- Minimum Top/Unit Widths (to Accommodate Hydraulic System):
- Electric Motor Hydraulic System:
- 6″ Lift – 28″ Min. Width
- 8″ Lift – 30″ Min. Width
- 10″ Lift – 32″ Min. Width
- 12″ Lift – 34″ Min. Width
- 16″ Lift – 38″ Min. Width
- Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
- Hand Crank folds beneath work surface…
- 6″ Lift – 15″ Min. Width or Depth
- 8″ Lift – 17″ Min. Width or Depth
- 10″ Lift – 20″ Min. Width or Depth
- 12″ Lift – 22″ Min. Width or Depth
- 16″ Lift – 26″ Min. Width or Depth
- Electric Motor Hydraulic System:
- Minimum Top/Unit Widths (to Accommodate Hydraulic System):
- “B” – DEPTH (Front-to-Back) 30″min., 36″, & 48″
- “C” – HEIGHT
- 30″ (Sitting “Desk” Height), 34″ (ADA/Accessible Height), 36″ (Standing Tasks)
- Minimum Starting Height with Hydraulic Lift – Varies (Levelers/Casters):
- 6″ Lift System – 22″/28″ Min. Start Height
- 8″ Lift System – 24″/30″ Min. Start Height
- 10″ Lift System – 26″/32″ Min. Start Height
- 12″ Lift System – 28″/34″ Min. Start Height
- 16″ Lift System – 30″/36″ Min. Start Height
- 20″ Lift System – 32″/38″ Min. Start Height
- Standard & Custom Sizes – We are the manufacturer…
This model is part of the RDM Industrial Workbenches standard models.
RDM: For Light Tables That Actually Deliver
RDM offers a wide array of light tables, for different needs and purposes.
Our aim has and will always be about giving people the furniture solutions that they need and want. As it is, you can rest assured that our table options will not only have the qualities and features that you need, but many other advantages as well!
Interested?
Here are some additional things that you might want to know:
Durability
RDM only makes use of high-grade, high quality materials. That is a fact.
Why?
We have always taken pride in providing clients with the best furniture solutions that they have been looking for.
Our products, including our light table for drawing and many other furniture options—are made of industrial components, for added durability. In addition, they have been specifically designed for heavy duty and long term use, in order to ensure that people get the most out of their investment.
