FACTORY – DIRECT / WORKBENCH MANUFACTURER
Table Model A-107P-FTCSTR – Hydraulic Flat Top Lift Table w/ Full-Time Casters
– Ergonomic Adjustable Height Table
- Durable Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
- Welded Tubular Steel Frame Connections
- See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables…
- Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More.
This model is part of the RDM Industrial Workbenches standard models.

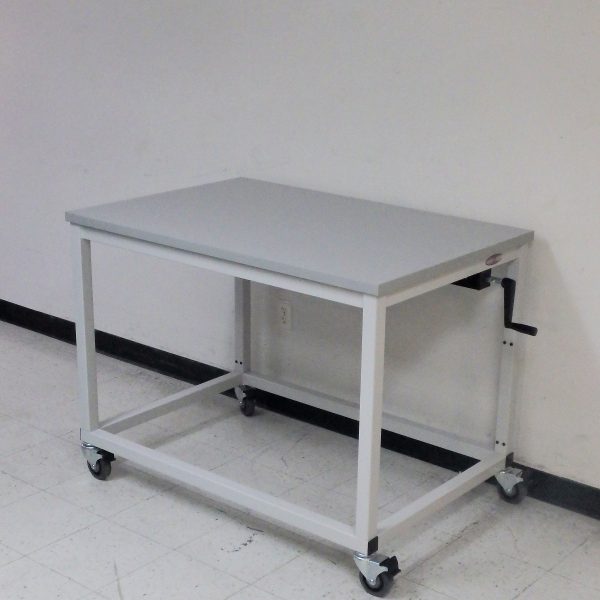

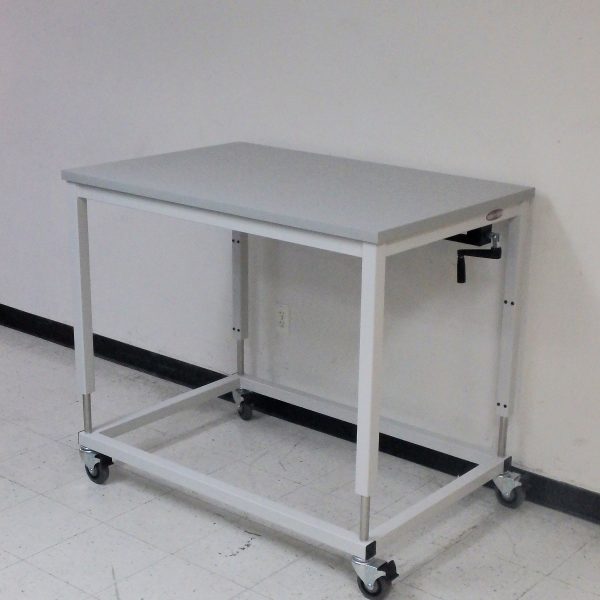

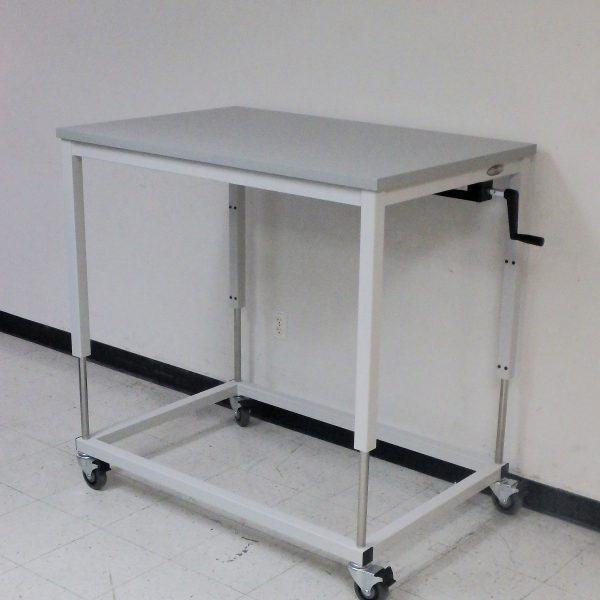

This Unit shown with Optional Casters for Mobility…
Standard Mobile Lift Table Features…
- Mobile Ergonomic Table – Height Adjustable with Hydraulic Lift System
- Hydraulic Height Adjustment w/ Electric Motor or Hand Crank
- 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
- Optional 1,500 pound capacity lift system available w/ electric motor – 4 & 6 Leg Unit (Less Weight of Unit)
- Optional 2,000 & 3,000 pound capacity lift system options available w/ electric motor – 8 Leg Unit (Less Weight of Unit)
- Hand Crank is mounted below work surface (Front or Side)
- Switch for Optional Electric Motor Unit can be positioned anywhere on the unit…
- UL Approved – Lift Systems with Electric Motors are UL listed (Required for Units w/ Electrical Components).
- CSA approved – Lift Systems with Electric Motors are CSA Certified (Required for Units w/ Electrical Components).
- – Non-Toxic, Food-Grade Hydraulic Fluid for above systems…
- 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
- Hydraulic Height Adjustment w/ Electric Motor or Hand Crank
- Full-Time Caster Frame allows table to be moved while top is in extended position.
- Industrial-Duty Casters with Locking Wheel & Pivot Standard (Other Styles Available)
- Other Styles Available – See Our Adjustable Height Tables page…
- Manually-Adjusted Height Option w/ Leg Pins – See Table Model A-109P-PIN
- Also See Our Laboratory Tables page…
- Standard Sizes:
- We are the manufacturer…
- Feel free to specify your custom dimension requirements below or choose from the following…
- “A” – WIDTH (Right-to-Left) 30″, 36″, 48″, 60″, 72″, & 96″
- Minimum Top/Unit Widths (to Accommodate Hydraulic System):
- Electric Motor Hydraulic System:
- 6″ Lift – 28″ Min. Width
- 8″ Lift – 30″ Min. Width
- 10″ Lift – 32″ Min. Width
- 12″ Lift – 34″ Min. Width
- 16″ Lift – 38″ Min. Width
- Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
- Hand Crank folds beneath work surface…
- 6″ Lift – 15″ Min. Width or Depth
- 8″ Lift – 17″ Min. Width or Depth
- 10″ Lift – 20″ Min. Width or Depth
- 12″ Lift – 22″ Min. Width or Depth
- 16″ Lift – 26″ Min. Width or Depth
- Electric Motor Hydraulic System:
- Minimum Top/Unit Widths (to Accommodate Hydraulic System):
- “B” – DEPTH (Front-to-Back) 24″, 30″, 36″, & 48″
- “C” – HEIGHT Minimum Starting Height (w/ 3″dia. Casters) – Varies:
- 6″ Lift System – 21″ Minimum Starting Height
- 8″ Lift System – 23″ Minimum Starting Height
- 10″ Lift System – 25″ Minimum Starting Height
- 12″ Lift System – 27″ Minimum Starting Height
- 16″ Lift System – 31″ Minimum Starting Height
- 20″ Lift System – 35″ Minimum Starting Height
FILL INFORMATION BELOW & CLICK "…CART" BUTTON AT BOTTOM
NOTE: * = Required
