FACTORY – DIRECT / WORKBENCH MANUFACTURER

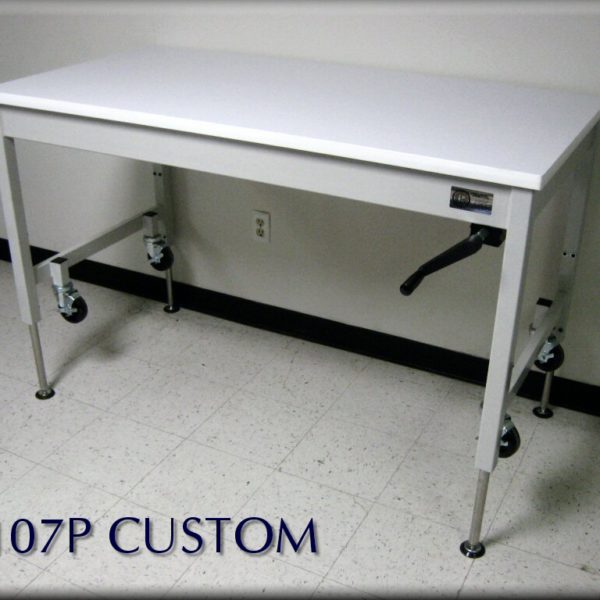

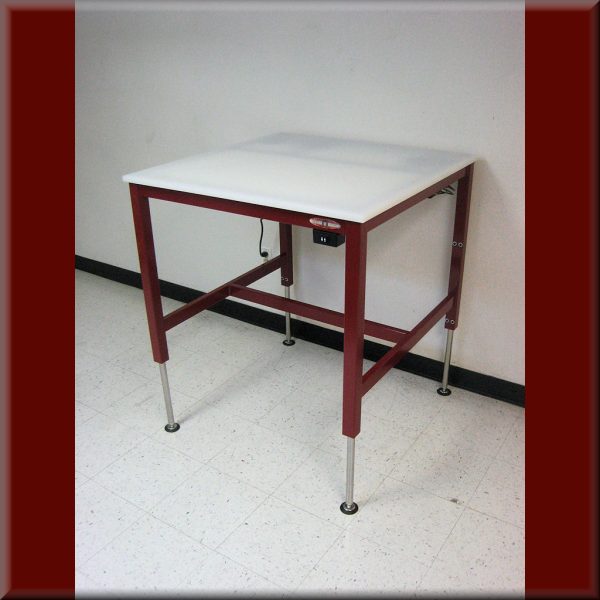

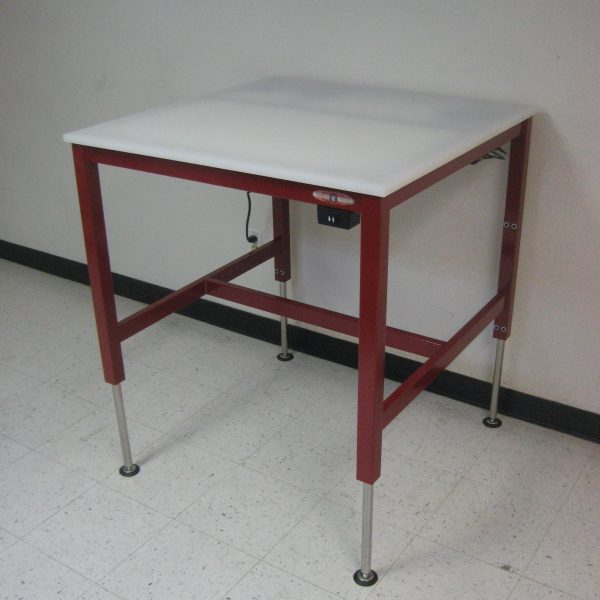

Table Model A-107P – Hydraulic Flat Top Lift Table

– Ergonomic Adjustable Height Table

Standard Lift Table Features…

  • Ergonomic Table – Height Adjustable with Hydraulic Lift System
    • Hydraulic Height Adjustment w/ Electric Motor or Hand Crank
      • 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
        • Optional 1,500 pound capacity lift system available w/ electric motor – 4 & 6 Leg Unit (Less Weight of Unit)
        • Optional 2,000 & 3,000 pound capacity lift system options available w/ electric motor – 8 Leg Unit (Less Weight of Unit)

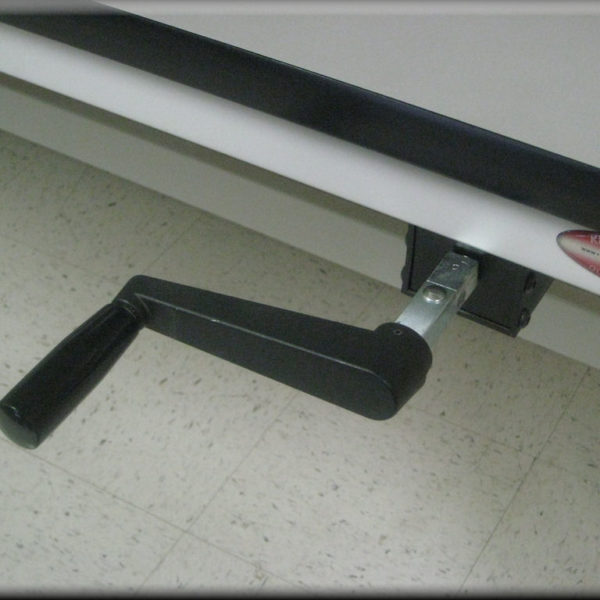

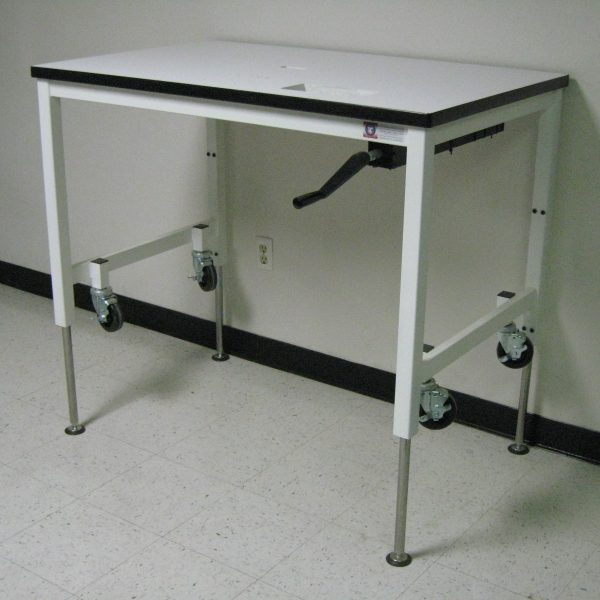

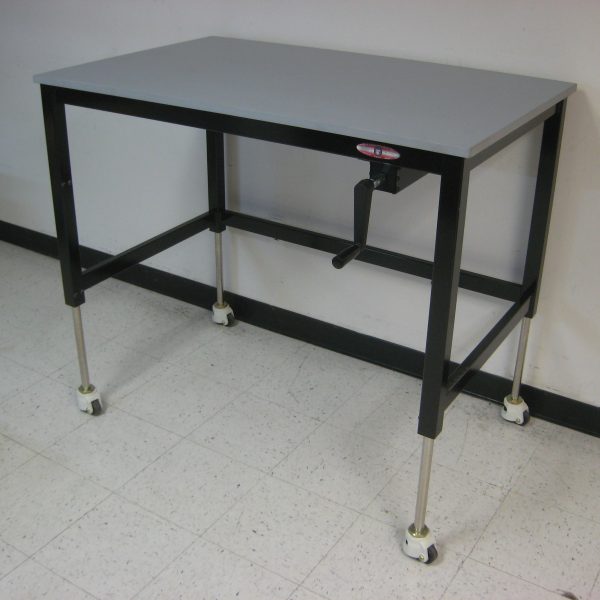

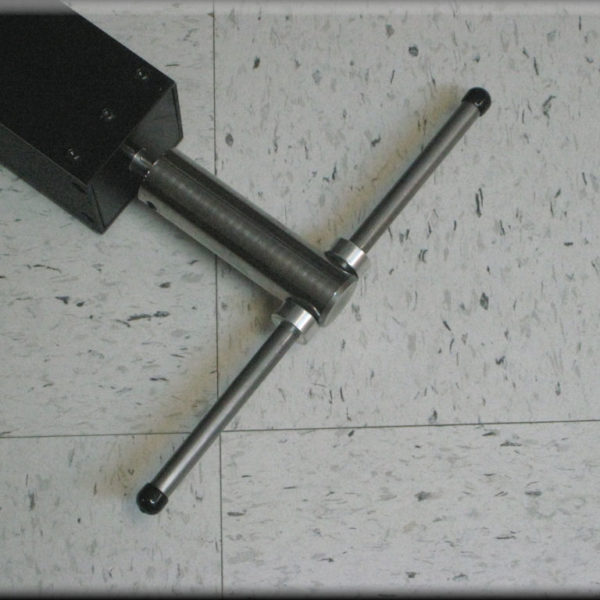

      • Hand Crank is mounted below work surface (Front or Side)

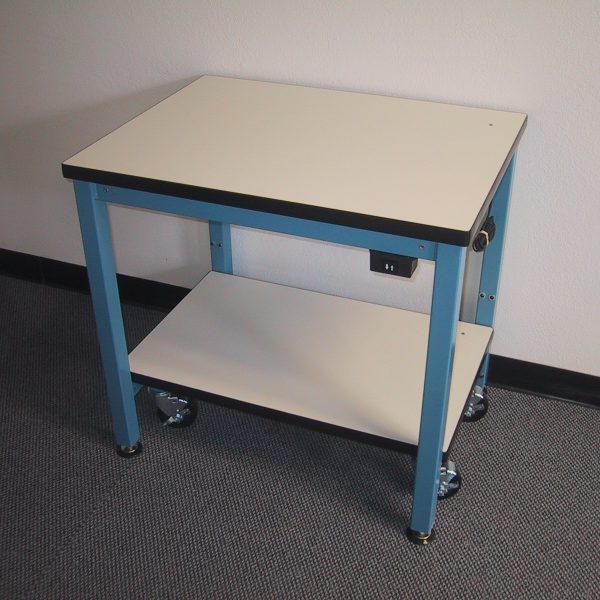

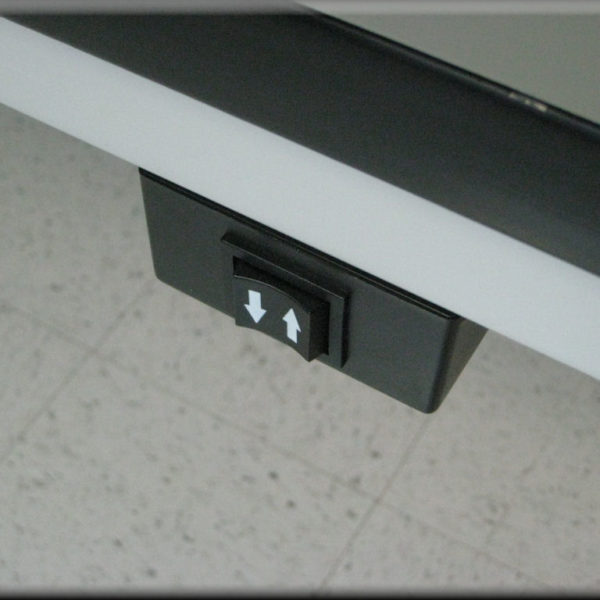

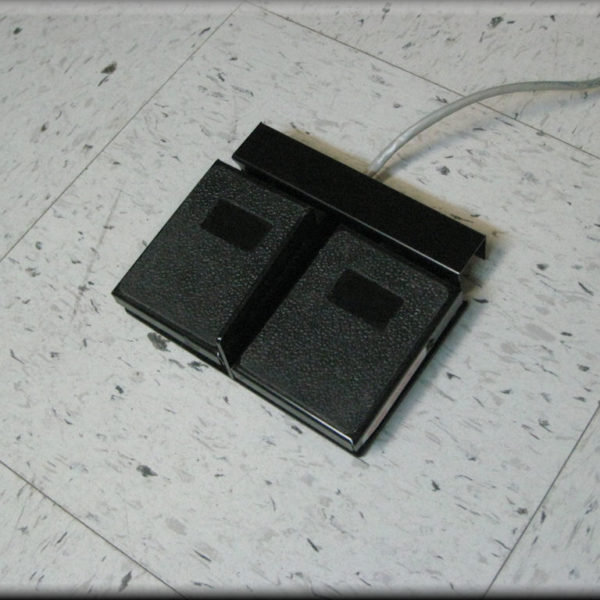

      • Switch for Optional Electric Motor Unit can be positioned anywhere on the unit…
      • UL Approved – Lift Systems with Electric Motors are UL listed (Required for Units w/ Electrical Components).
      • CSA approved – Lift Systems with Electric Motors are CSA Certified (Required for Units w/ Electrical Components).
      • – Non-Toxic, Food-Grade Hydraulic Fluid for above systems…
  • Other Styles Available – See Our Adjustable Height Tables  page…
  • Standard Sizes:
    • We are the manufacturer…
    • Feel free to specify your custom dimension requirements below or choose from the following…
    • “A” – WIDTH (Right-to-Left) 30″, 36″, 48″, 60″, 72″, & 96″
      • Minimum Top/Unit Widths (to Accommodate Hydraulic System):
        • Electric Motor Hydraulic System:
          • 6″ Lift – 28″ Min. Width
          • 8″ Lift – 30″ Min. Width
          • 10″ Lift – 32″ Min. Width
          • 12″ Lift – 34″ Min. Width
          • 16″ Lift – 38″ Min. Width
        • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):

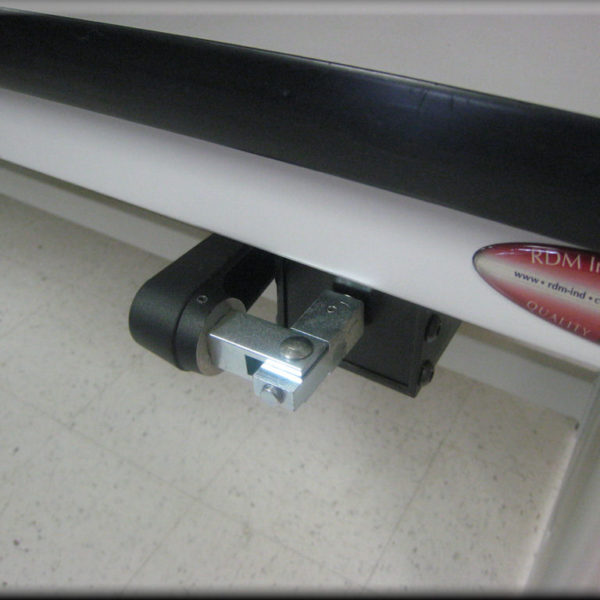

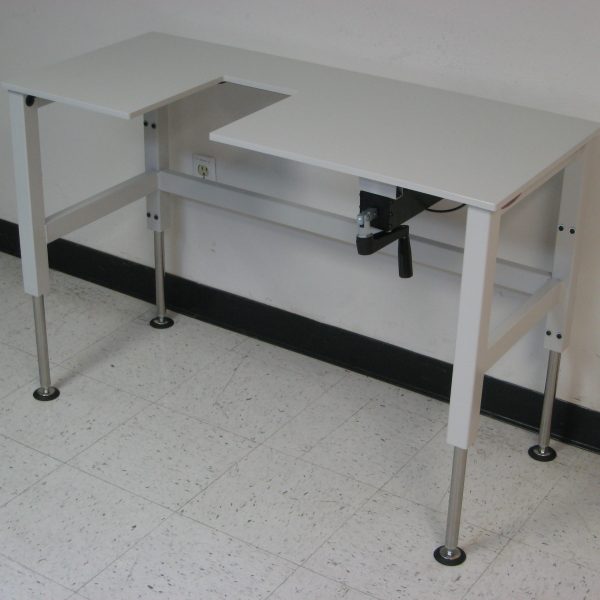

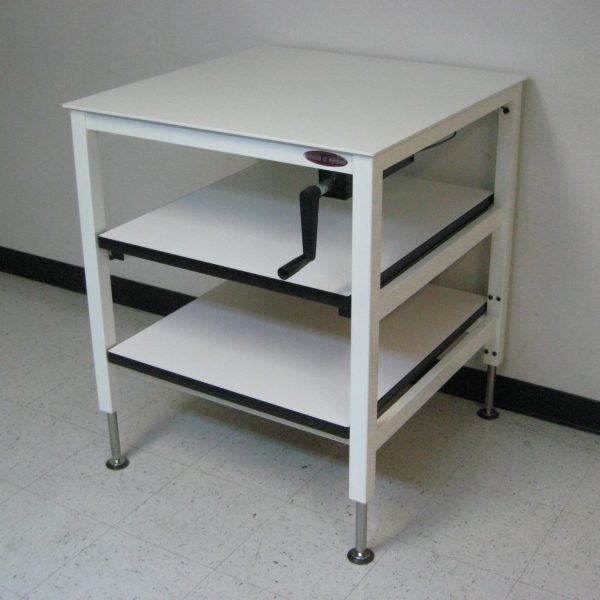

          • Hand Crank folds beneath work surface…
          • 6″ Lift – 15″ Min. Width or Depth
          • 8″ Lift – 17″ Min. Width or Depth
          • 10″ Lift – 20″ Min. Width or Depth
          • 12″ Lift – 22″ Min. Width or Depth
          • 16″ Lift – 26″ Min. Width or Depth
    • “B” – DEPTH (Front-to-Back) 24″, 30″, 36″, & 48″
    • “C” – HEIGHT Minimum Starting Height – Varies:
      • 6″ Lift System – 16″ Minimum Starting Height
      • 8″ Lift System – 18″ Minimum Starting Height
      • 10″ Lift System – 20″ Minimum Starting Height
      • 12″ Lift System – 22″ Minimum Starting Height
      • 16″ Lift System – 26″ Minimum Starting Height
      • 20″ Lift System – 30″ Minimum Starting Height
  • Durable Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
    • Welded Tubular Steel Frame Connections

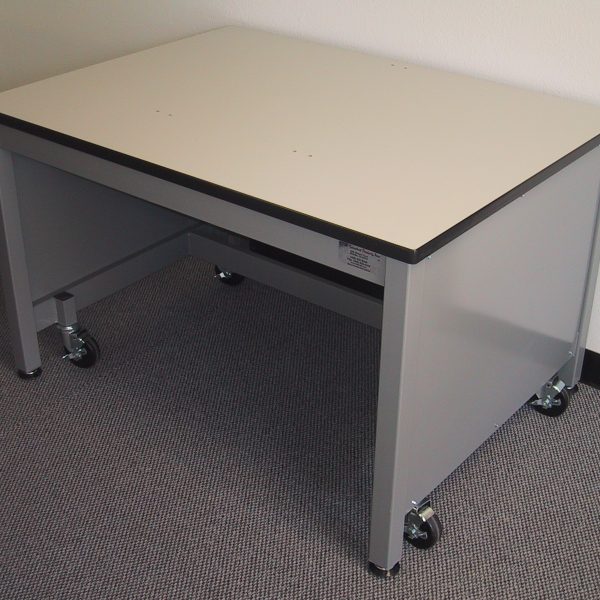

  • Adjustable Leveling Feet.  Casters available as option – See below…
  • See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables…

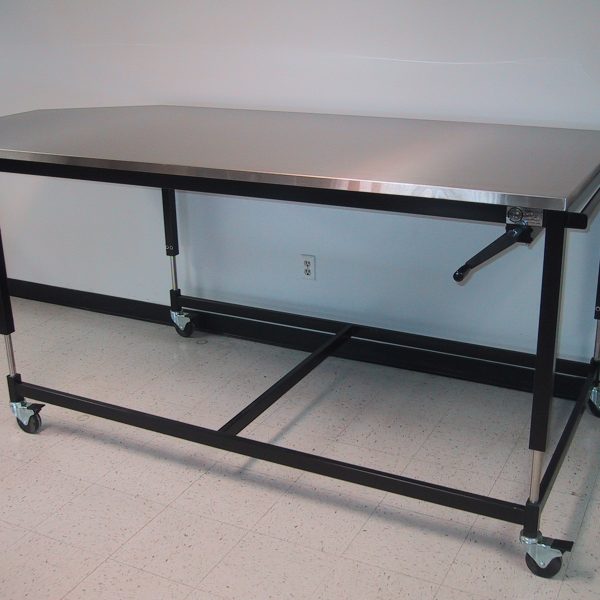

  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More.

This model is part of the RDM Industrial Workbenches standard models.
