FACTORY – DIRECT / WORKBENCH MANUFACTURER

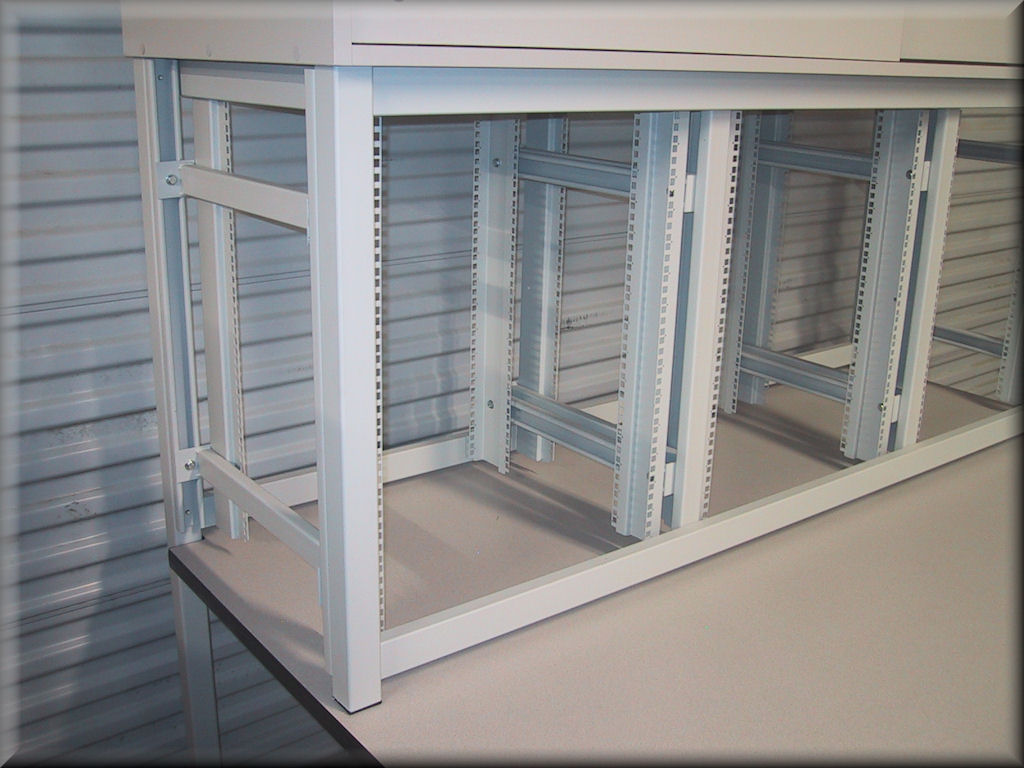

Table Model ER-108P – Equipment Rack Workstation

Equipment Rack Workstation for Your Servers, Etc…



NOTE:  This unit shown with optional features: Overhead Ionizer, Articulating Monitor Arm System, Overhead Lighting System, Casters, ESD Static Control Work Surface, and Sliding Keyboard Tray.

Standard Table Features…

  • Equipment Rack Workstation with Open Frame Architecture Equipment Rack Bay(s)
    • Accommodates industry standard EIA 19″ wide equipment.  24″ wide EIA industry standard also available…
    • EIA square hole mounting surfaces – Choice of 10-32, 12-24 or M6 cage nuts sizes.
    • Channeled rear legs accept many workbench accessories…
  • Standard Sizes:
    • We are the manufacturer – Feel free to specify your custom dimension requirements below or choose from the following…
    • “A” – Width (Right-to-Left)
      – For 19″wide EIA Bays – 48″, 60″ & 72″, 96″
      – For 24″wide EIA Bays – 30″, 60″, 90″, 120″
    • “B” – 30″ & 36″ Overall Unit Depth (Front-to-Back)
    • “C” – 30″ (Sitting “Desk” Height), 34″ (ADA/Accessible Height), 36″ (Standing Tasks)
    • “D” – 25″, 30″, or 36″ (Front-to-Back Depth of Equipment Rack Bays)
      • Adjustable Depth Mounting Rails
    • “E” – Height of Rack Bays (30″ (13U) typ. – Up to 70″)
    • “F” – Height of Upper Cabinet (14″typ.) – Optional Item…
  • Durable Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
    • Welded Tubular Steel Frame Connections for Non-Adjustable Components
  • Adjustable Leveling Feet.  Casters available as option – See below…
  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More…

This model is part of the RDM Industrial Workbenches standard models.
