Workbench Accessories – Lift System – Standard 1,000 lb Capacity

Easy Add-On Lift System Kit – Hand Crank or Electric Motor

HYD-D1A-4POST
RDM-D1A-HAND-4P-12
RDM-D1A-ELEC-4P-12
<span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> - Lift System - Standard 1,000 lb Capacity - Image 4
<span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> - Lift System - Standard 1,000 lb Capacity - Image 5
HydLift Dyn AlumFrame
Hydraulic Mobile Lift Table A-107P-HYD12M-FTCSTR-01
Hydraulic Lift Table A-107P-HYD12M-PTCSTR-01 Hydraulic Flat Top Cart

Click Here to Download Recharge Kit Instructions 1000 LB Units

Click Here to Download Recharge Kit Instructions 1500 LB Units

  • Electric Motor Options Include:
    • Standard Up/Down Rocker Switch
    • 3-Position Memory Switch with Up/Down
    • Foot Pedal Switch
    • Synchronized switch to operate two systems at once
    • Safety Stop Valves are available as an option…
  • Safety Stop Valves are available as an option…

Standard Base Lift System (250-1000 lbs)
Adjustable lift systems provide ergonomic option for worker safety and comfort.
  • Complete and Ready-To-Install Height Adjustable Ergonomic Workstations
  • Choose from 1-8 Cylinders (Legs)
    • 250 pound capacity per leg
    • 1,000 pound max capacity on 6-post system
  • Manual or Electric Operation
  • Stainless Steel Leg Optional
  • Custom Systems Available
  • Standard Unit Offers 0-16 Inch Height Adjustment Range
  • Uses Colorless, Odorless, Non-Staining, Non-Toxic Fluid
    • Excellent for use in Cleanroom Class 100 or Less
    • Excellent for use in Food Industry
  • Smooth Quiet Operation
  • Available in 6″, 8″, 10″, 12″ & 16″ Strokes
  • Design Guidelines:
    • Tubing Bend Radius is 1-1/2″ min.
    • Duty Cycle for electric motors is typically is one (1) minute ON with five (5) minutes OFF rest time.
    • Uneven Loads are OK, as long as the minimum load to retract the legs is applied to each leg AND the maximum load is not exceeded for each leg.
    • Durability Testing – Unit design has been tested to meet or exceed 30,000 cycles.
    • Lift Speed for 1,000 lb systems is five (5) turns of the hand crank for one (1) inch of travel.  35 seconds total travel time for 12″lift, electric motor.
Add-On Lift Kit for Table

RDM Lift System
Model RDM-D1A-ELEC-4P-12

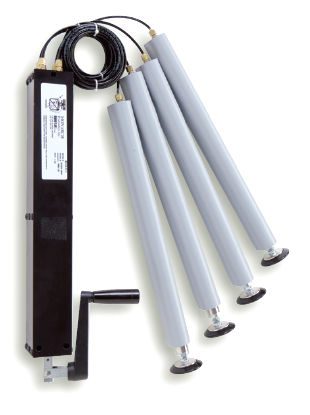

RDM-D1A-HAND-4P-12

RDM Lift System
Model RDM-D1A-HAND-4P-12
