Table Model AT-107P – Advanced Hydraulic Flat Top Lift Table

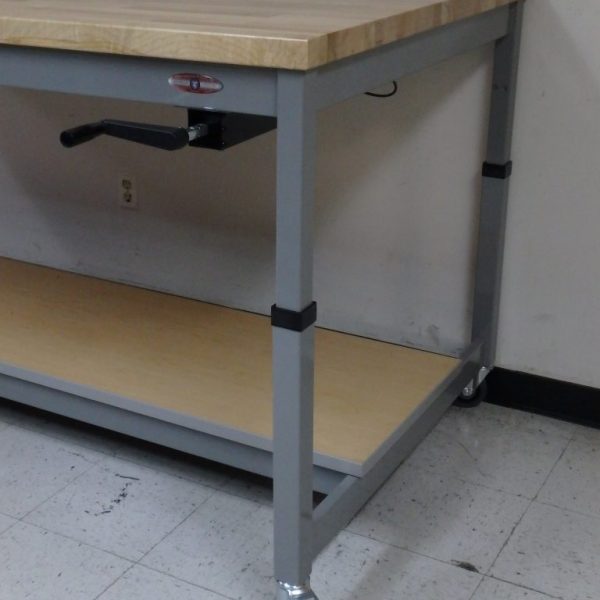

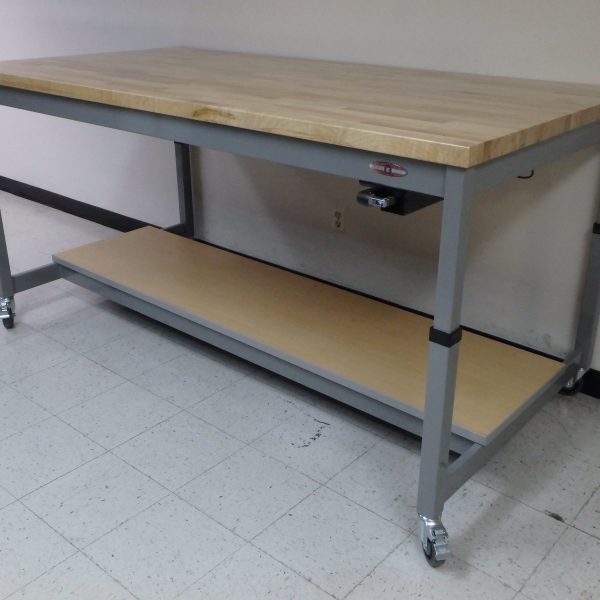

This Unit Shown with Optional Casters & Half-Depth Lower Shelf

Hydraulic Flat Top Lift Table Standard Features…

• Hydraulic Flat Top Lift Table Advanced Stability Ergonomic Table – Height Adjustable with Hydraulic Lift System
  • Ideal for Equipment and Oscillating Machines / Equipment
  • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
    • 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
      • Optional 1,300 & 1,500 pound capacity lift system available w/ electric motor – 4 & 6 Leg Unit (Less Weight of Unit)
    • Hand Crank is mounted below work surface (Front or Side)
    • Switch for Optional Electric Motor Unit can be positioned anywhere on the unit…
    • UL Approved – Lift Systems with Electric Motors are UL listed (Required for Units w/ Electrical Components).
    • CSA approved – Lift Systems with Electric Motors are CSA Certified (Required for Units w/ Electrical Components).
    • – Non-Toxic, Food-Grade Hydraulic Fluid for above systems…
  • Manually-Adjusted Height Option w/ Leg Pins – See Table Model A-109P-PIN
• Other Styles Available – See Our Adjustable Height Tables  page…
  • Also See Our Laboratory Tables page…

• Standard Sizes:

  • We are the manufacturer…
  • Feel free to specify your custom dimension requirements below or choose from the following…
  • “A” – Width (Right-to-Left) 30″, 36″, 48″, 60″, 72″, & 96″(max.)
    • Minimum Top/Unit Widths (to Accommodate Hydraulic System):
      • Electric Motor Hydraulic System:
        • 12″ Lift – 34″ Min. Width
      • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
        • Hand Crank folds beneath work surface…
        • 12″ Lift – 22″ Min. Width or Depth
  • “B” – Depth (Front-to-Back) 24″, 30″, 36″, & 48″
  • “C” – Standard Height Range 30″-42″ (with Levelers or Casters)

• Additional Features:

• Durable Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
  • Welded Tubular Steel Frame Connections
• Adjustable Leveling Feet.  Casters available as option – See below…
• See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables…
• Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More.

This Hydraulic Flat Top Lift Table model is part of the RDM Industrial Workbenches standard models.
