RDM - ESD Static Control Tables

ESD / Static Control Workstations...
- Can be applied to most of our table styles

Dimensions:

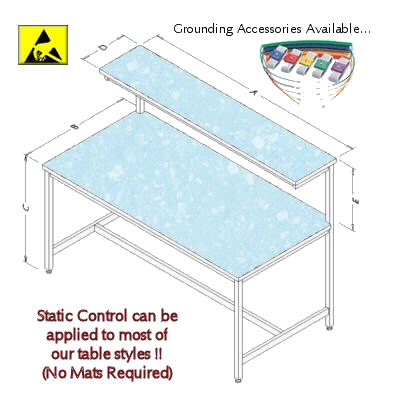

Model F-103P Shown Above...
( OTHER STYLES AVAILABLE )
Click Here for More... (Workbench Photo Gallery)

Click Here for Blank Drawing
Print & Fax to 408-945-8433

(Acrobat .pdf)

Other Table Styles...

Click Here for More...

A (Width)

B (Depth)

C (Height-Main)

D (Depth-Upper)

E (Height-Upper)

Environment:

Top & Frame
Finish/Colors:
See Samples

Quantity Req'd:

- Enter Required Information at Left...

Standard Table Features...

Designed for use with Sensitive Electronic Components...
ESD Static Control plastic laminated work surface.
Grounding Jacks located on each front leg for wrist / foot strap connection.
Grounding Lead provided for frame and top to connect to Client's Ground.
Fully-Welded Tubular Steel Frame Connections - No open connections to collect dust.
Durable Tubular Steel Table Legs w/ Leveler Feet. Casters available as option - See below...
Standard Polyurethane paint finish is as durable as any powder-coat finish once fully cured.
- Powder-Coated finish available as option...
Standard Sizes:
- We are the manufacturer - Feel free to specify your custom dimension requirements
  above or choose from the following...
- "A" - 48", 60" & 72" Width (Right-to-Left)
- "B" - 30" & 36" Depth (Front-to-Back)
- "C" - 30" (Sitting "Desk" Height), 34" (ADA/Accessible Height), 36" (Standing Tasks)
- "D" - 12" to 18"
- "E" - 18" to 24" (Add 3 1/2" to your under-shelf clearance requirement)
  This model is part of the RDM Industrial workbenches standard models.

ESD Static Control Workstation Options:

- Static Dissipative Laminated Worksurface: NoneMain Top OnlyLower Shelf (If Applicable)All Work Surfaces

- Static Dissipative ESD Table Mat(s): NoneMain Top OnlyLower Shelf (If Applicable)All Work Surfaces

Note: ESD Mats are not needed for tables manufactured with ESD laminated surface(s)...

- Static Dissipative ESD Floor Mat: NoneMain Top OnlyLower Shelf (If Applicable)All Work Surfaces

Note: ESD Floor Mats are not needed for floors designed with Static Dissipative surface(s), such as ESD Tile...

- Ionizing Systems: NoneTable Top IonizerOverhead IonizerIonizing Air Gun

- Grounding Ports / Jacks: StandardStd.+ Dual Banana Jack PortStd. + Dual Banana Jack Port w/ Wrist Strap Holder
Note: Standard - Two total grounding ports / jacks are provided on the front legs of workstation(s).

- Wrist Strap(s): NoneStandardPremium Metal Expansion
Note: Standard - Adjustable Elastic Wrist Strap with coiled cord.

- Optional Accessories (Click Here to Expand...)

- Your Contact Information...

Please fill in your contact information below and press the SUBMIT REQUEST button below to forward your request to us...
Fields marked * are required
Name:	*	Company:	*
Phone:	*	Email:	*
Address:		Fax:
Ship to ZIP:	*	State:	*

This is: An Order A Quote Request Are the items for resale ?? Yes No
