Fume Hood Model XB-MAX - High Performance Low Air Flow Fume Hood...


Model XB-MAX Economy Fume Hood
High Performance, Low Cost Exhaust Hood for Non-Hazardous Fumes...

Dimensions:

(See features below...)

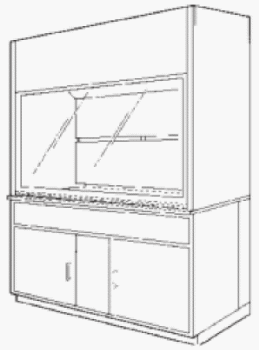

XB-MAX Laboratory Fume Hood - Thin Wall Economy Fume Hood
(Shown with Optional Base Support Cabinets)

Light Almond Ivory Beige Off White Platinum Matte Grey Black
Lt. Almond Ivory Beige Off White Platinum Matte Grey  Black
Dark Taupe Green Light Blue Sea Blue Deep Blue Burgundy White
Dark Taupe Green Light Blue Sea Blue Deep Blue Burgundy  White
Click Here for Spec. Sheet
Print & Fax to 408-945-8433
Adobe Systems, Inc. (Acrobat .pdf)
Finish / Colors:
See Samples RDM Industrial Products
Select More Options Below:

Quantity Req'd:

- Enter Required Information at Upper Left...

Ball Transfer Table Hookup
FUME HOOD
USER
GUIDE



Ball Transfer Table Hookup
FUME HOOD
BROCHURE

Features:
  • The XB-MAX BenchTop Fume Hood provides an excellent low cost means of exhausting high heat loads and non-hazardous fumes. The thin wall design allows for maximum interior work area and is well suited for installation on any counter surface with 30" depth.  Features Include:
  • 18ga Wall Construction over Heavy Gauge Framework
  • Stainless Steel Front Posts with #4 finish
  • The superstructure is of heavy gauge powder-coated steel.
  • Vertically sliding, laminated safety glass sash with counter-balanced, smooth efficient movement.
  • Adjustable Upper Air Baffle to maximize performance
  • Minerit Chemical Resistant Interior Liner, Gray composition stone material
  • Fixed Lintel restricts the air intake to the sash opening
  • Light switch
  • Energy Efficient T8 fluorescent light fixture
  • Electrical Junction Box located at top of hood
  • Modular Construction allows for Easy Disassembly and Reassembly
  • Standard Sizes: All Units are 29" deep x 53.25" high (64-3/8" high with sash fully opened)
    • XB-Max300-35 - 35" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 8" collar, 250#
    • XB-Max300 - 36" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 8" collar, 250#
    • XB-Max400-47 - 47" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 9" collar, 350#
    • XB-Max400 - 48" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 9" collar, 350#
    • XB-Max500-58 - 58" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 10" collar, 450#
    • XB-Max500 - 60" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 10" collar, 450#
    • XB-Max600-70 - 70" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 10" collar, 550#
    • XB-Max600 - 72" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), single 10" collar, 550#
    • XB-Max700 - 84" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), dual 9" collars, 650#
    • XB-Max800-94 - 94" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), dual 9" collars, 750#
    • XB-Max800 - 96" wide - Interior: __"wide x 23-1/4"deep x 48"high (31"clear height opening), dual 9" collars, 750#
    • Custom Sizes Available - Enter your dimensions in comment space below...
  • TESTING & APPROVAL:
    Meets ASHRAE 110-1995 testing requirements set forth by ASHRAE. For specific test results please contact your sales representative or the factory. Meets the Federal government’s OSHA standards for safe operation within the laboratory environment. Constructed to meet UL 1805 classification and manufactured from approved materials only.
  • Optional Accessories:
    • Air Flow Monitor Alarm
    • Requires a remote exhaust fan, available as option
    • Fire Extinguisher (Dry Chemical for classes A,B,C & D, U.L. Approved)
    • Electrical Outlets
    • Pre-wire electrical to top junction box
    • Alternate Liners:  Stainless Steel, PVC, Fiberglass Resin, Polypropylene
    • Base Storage Cabinets or Table Frame
      • Standard metal Cabinets
      • Standard Melamine or Laminated Cabinets
      • Chemical-Resistant Cabinets
      • Flame-Resistant Cabinets
      • Vacuum Unit Cabinets
    • Manometer - Monitors pressure differences.  Allows user to keep track of pressure loss.
    • Static Pressure Gauge - Dial type that senses static pressure within a space. Typically mounted in exhaust duct with gauge mounted on face of hood.
    • Filler Panels and Ceiling Enclosure Panels to Match Hood


  - Air Flow Velocity Alarm: (Must be Included)
    Manometer - Monitors pressure differences
    Static Pressure Gauge
    Deck-Mount Cup Sink (appx. 3"x6")
    Fire Extinguisher (Dry Chemical for classes A,B,C & D, U.L. Approved)
    - Sash Stop Options: Standard Cam Locking Cam Spring Loaded Pin
    - Lighting Options: Standard Fluorescent Explosion-Proof Electrical & Lighting
    Ceiling Enclosure - Specify Your Finished Ceiling Height:
    Finished Back - For Fume Hoods that are to be placed in center of a room...

  Base Support Options:





Click HERE for more options...




Chair Options:





1P - Tubular Base, Concave Seat, Backrest with Lumbar Support

1Q - Cast Aluminum Base, Concave Seat, Backrest with Lumbar Resort

Ergonomic Backrest

v

Compact Armrests

6-way Articulating
Seat Control
Adjustable 20" Foot
Ring (for 1Q Series)
2" Soft Casters for
Hard Floor
Note: Seat Height will be
determined according to
table height input above.
2" Dual Hard Wheel
Carpet Casters
ESD Static Control

1P Series

1Q Series



Note: No Worries - We will suggest options according to the environment you select above...

No Chair(s) Needed
