| Fume Hood Model SB-MAX-A - Our Most
Common Fume Hood Model... |
|
| |
|

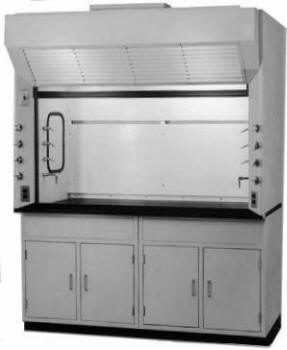

Model SB-MAX-A
Fume Hood
Airfoil Add Air Unit Provides Added Economy via a
front-mount Add-Air Plenum... |
Dimensions:
(See features below...) |
|
|
Environment:
|
|
Finish / Colors:
See Samples
|
|
|
|
|
|
Select More Options Below: |
|
|
|
|
Quantity Req'd:
|
|
| |
|
|
- Enter Required Information at
Upper Left... |
|
| |
|
Features:
- The S-MAX-A BenchTop Airfoil Add-Air Fume Hood incorporates an Add Air (Make-up Air) System,
which allows your air conditioned air to remain inside the building
while air from outdoors is introduced through the add air plenum. This
Fume Hood is ideal for most laboratory exhaust application needs. The
narrow design of the hood allows easier installation by enabling it to
fit through the width of a standard doorway opening. Similar to the
SB-MAX with a built-in bypass feature, this unit also maintains a
relatively constant face velocity at any sash opening height.
Additional Features Include:
- Add-Air Plenum
- Continuous air flow across the work surface with lower airfoil
bypass, even with sash fully closed.
- 45 degree front fascia to eliminate air turbulence.
- No Exposed Steel Fasteners on Interior or Exterior of Hood
- Double side wall construction allows for installation of
many service outlets / fixtures.
- Easily removable interior and exterior side access panel(s)
- Full view, Vertically sliding, laminated safety glass sash
with counter-balanced, smooth efficient movement with full-width
finger pull.
- Resin-Chem chemical resistant, fiberglass-reinforced
thermoset resin interior liner, white UL approved material
- Energy Efficient T8 fluorescent light fixture is mounted
above a sealed safety glass panel, isolated from interior.
- Light switch, located on the exterior front of side walls.
- Two duplex 115v outlets, located on the exterior front of
side walls.
- Light, switch and outlets are pre-wired to Electrical
Junction Box located at top of hood.
- The superstructure is of heavy gauge powder-coated steel.
- Rectangular stainless steel exhaust duct collar
- Removable, adjustable air baffle system for fine tuning air
control flexibility
- Lower Metal Air Foil (Optional Stainless) allows for
smoother air flow and aids in the removal of heavy fumes, which
provides continuous air flow across the work surface with lower
airfoil bypass, even with sash fully closed.
- Requires a remote exhaust fan, available as option
- Modular Construction allows for Easy Disassembly and
Reassembly
- Interior Dims: appx. __"wide x 24"deep x 48"high clear (31"clear
height opening)
- Exterior Dims: appx. __"wide x 33-7/8"deep x 54.25"high (66-5/8"
with sash fully opened)
- Standard Sizes:
(All Units are 33" deep x 57.25" high)
- SB-Max300-A35 - 35" wide - Interior: 25"wide x 24"deep x
48"high (31"clear height opening), single 6"x10" collar, 250#
- SB-Max300-A - 36" wide - Interior: 26"wide x 24"deep
x 48"high (31"clear height opening), single 6"x10" collar, 250#
- SB-Max400-A47 - 47" wide - Interior: 38"wide x 24"deep x
48"high (31"clear height opening), single 6"x12" collar, 350#
- SB-Max400-A - 48" wide - Interior: 39"wide x 24"deep
x 48"high (31"clear height opening), single 6"x12" collar, 350#
- SB-Max500-A58 - 58" wide - Interior: 49"wide x 24"deep
x 48"high (31"clear height opening), single 6"x16" collar, 450#
- SB-Max500-A - 60" wide - Interior: 51"wide x 24"deep
x 48"high (31"clear height opening), single 6"x16" collar, 450#
- SB-Max600-A70 - 70" wide - Interior: 60"wide x 24"deep
x 48"high (31"clear height opening), single 6"x20" collar, 550#
- SB-Max600-A - 72" wide - Interior: 62"wide x 24"deep x 48"high
(31"clear height opening), single 6"x20" collar, 550#
- SB-Max700-A - 84" wide - Interior: 74"wide x 24"deep x
48"high (31"clear height opening), dual 6"x12"" collars, 650#
- SB-Max800-A94 - 94" wide - Interior: 84"wide x 24"deep
x 48"high (31"clear height opening), dual 6"x12" collars, 750#
- SB-Max800-A - 96" wide - Interior: 86"wide x 24"deep
x 48"high (31"clear height opening), dual 6"x12" collars, 750#
- Custom Sizes Available - Enter your dimensions in
comment space below...
- TESTING & APPROVAL:
Meets ASHRAE 110-1995 testing requirements set forth by ASHRAE. For
specific test results please contact your sales representative or the
factory. Meets the Federal government’s OSHA standards for safe
operation within the laboratory environment. Constructed to meet UL 1805
classification and manufactured from approved materials only.
- Optional Accessories:
- Air Flow Monitor Alarm
- Optional Combination Sash with Horizontal Sliding Doors and Other Configurations available.
- Requires a remote exhaust fan, available as option
- Pre-Plumbing for Service Fixtures is Optional
- Fire Extinguisher (Dry Chemical for classes A,B,C & D, U.L. Approved)
- Remote Service Fixtures: Air, Vacuum, Gas,
Nitrogen, Cold Water, Argon, etc.
- 220v Electrical
- Explosion-Proof Electrical and Lighting
- Pre-wire electrical to top junction box
- Alternate Liners: Stainless Steel, PVC,
Fiberglass Resin, Polypropylene
- Base Storage Cabinets or Table Frame
- Standard metal Cabinets
- Standard Melamine or Laminated Cabinets
- Chemical-Resistant Cabinets
- Flame-Resistant Cabinets
- Vacuum Unit Cabinets
- Velocity Alarm (Digital or Analog)
- Manometer - Monitors pressure differences. Allows user to
keep track of pressure loss.
- Static Pressure Gauge - Dial type that senses static pressure within a space.
Typically mounted in exhaust duct with gauge mounted on face of
hood.
- Filler Panels and Ceiling Enclosure Panels to Match Hood
|
| |
|
 |

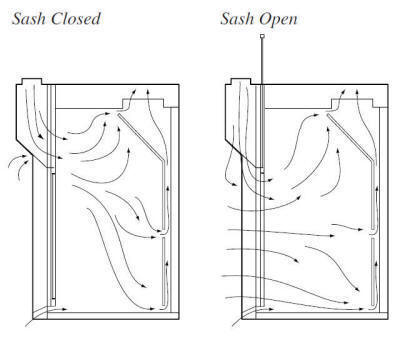

SB-MAX-A Airfoil Add Air
Hoods:
The Add Air Hoods provide up to 70% of the Hood exhaust
requirements. With a bypass similar to the Airfoil Bypass Hood,
outside air is introduced through the add air plenum, thus
minimizing the amount of conditioned room air required. When
outside temperatures are extreme, it may be necessary to temper
the incoming air. |
|
 |
|
|
| |
|
|
| |
|
|
|
| |
|
- Alternate Exterior Options:
None
Wood
Stainless
Steel |
| |
|
- Air Flow Velocity Alarm:
NoneDigitalAnalog |
|
| |
|
Manometer - Monitors pressure differences |
|
| |
|
Static Pressure Gauge |
| |
|
Deck-Mount Cup Sink (appx. 3"x6") |
| |
|
Wall-Mount Cup Sink (appx. 3"x6") |
| |
|
Fire Extinguisher (Dry Chemical for classes A,B,C & D, U.L. Approved) |
| |
|
- Sash
(Door) Options:
Vertical
Sash (Standard)
Vertical
Split Sash
Combination
Sash
Horizontal
Sash |
| |
|
- Sash
Stop Options:
Standard
Cam
Locking
Cam
Spring
Loaded Pin |
| |
|
-
Electrical:115V
Duplex (Standard)
250V
Simplex (Single Outlet)
250V
Duplex (Double Outlet)
120V
GFI Duplex (Ground Fault Interrupt) |
| |
|
-
Specify other Electrical:
|
| |
|
-
Lighting
Options:
Standard
Fluorescent
Explosion-Proof
Electrical & Lighting |
| |
|
Ceiling Enclosure - Specify Your Finished Ceiling Height:
|
| |
|
Finished Back - For Fume Hoods that are to be placed in center of a
room... |
|
|
|
| |
|
Fume Hood Liner Options: |
Service Fixture Options: |
|
|
|
|
Air |
Cold Water |
|
|
|
Base Support Options: |
Vacuum |
Argon |
|
|
|
|
Nitrogen |
- Other:
|
|
|
|
Natural
Gas |
- Other:
|
| |
|
|
| |
|
|
|
| |
|
