Lift Tables At RDM - Lift Platform - LP-107P


Link to Main



O  R  D  E  R  /  Q  U  O  T  E    W  E  B    F  O  R  M

STEP ONE  Fill in basic information at left required to process your request.
STEP 2  Select optional features that you would like to add to your unit(s).
STEP 3  Fill in your contact information at the bottom of this page.

STEP ONE

Lift Platform Model LP-107P - Our Ergonomic Lift Platform
    - Designed for Lower Starting Heights...


M O R E    I M A G E S    B E L O W    . . .

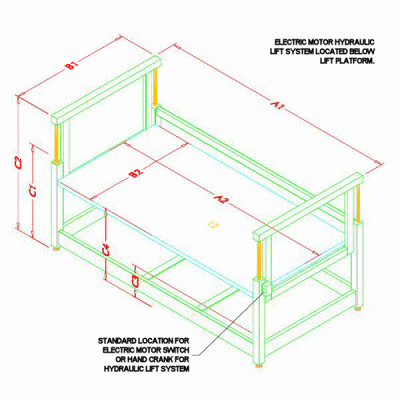

RDM LP-107P Lift Platform

Click Here for More Table Styles... (Workbench Photo Gallery)
Click Here for Blank Drawing
Print & Fax to 408-945-8433
Adobe Systems, Inc. (Acrobat .pdf)

Other Lift Table Configurations...
Lift Table w/ Hand Crank & Casters Ergonomic Lift Table  Lift Platform  Lift Table with Overhead Accessory Boom
Model A-107P
Lift Table - 4 or more Legs
(Standard to Heavy Duty)
(Take me There)
Model i-107P
Ergonomic ADA Tables
(Light to Medium Duty)
(Take me There)
Model LP-107P
Lift Platform
(1,000 & 1,500 lb capacities)
9.5" at Lowest + 6-16"
(Quote Request This Page)
Model i-107P-BOOM
Lift Table w/
Overhead Accessory Boom
(Many Options)
(Take me There)
- Totally "Customizable" -

Dimensions:
A1 (Overall Width)
    = A2 + 4.25"
A2 (Platform Width)
  - 25.75" Min. for 6" Lift
  - 27.75" Min. for 8" Lift
  - 29.75" Min. for 10" Lift
  - 31.75" Min. for 12" Lift
  - 33.75" Min. for 14" Lift
  - 35.75" Min. for 16" Lift
B1 (Overall Depth)
    = B2 + 2"
B2 (Platform Depth)
C1 (Frame Ht. at Lowest)
  - 18" for 6" Lift System
  - 20" for 8" Lift System
  - 22" for 10" Lift System
  - 24" for 12" Lift System
  - 26" for 14" Lift System
  - 28" for 16" Lift System
  (Select Lift System Below...)
C2 (Frame Ht. at Highest)
    = C1 + Lift Range
C3 (Ht. at Lowest)
  - 6.5"min. for Man. Lift
  - 9.5"min. for Elec. Lift
C4 (Ht. at Highest)
    = C3 + Lift Range

Lift Control:


Safety Stop Valves $$ - Used to lock legs in place if hydraulic line is cut.

Environment:


Top & Frame
Finish/Colors:
See Samples RDM Industrial Products




Quantity Req'd:


Proceed to STEP 2 below
for Optional Accessories:

Proceed to Submit
- Enter Required Information at Upper Left...
    Standard Lift Platform Features...
  • Ergonomic Table Height Adjustability (Options)
    • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
      • Switch for Electric Motor Unit can be positioned anywhere on the unit...
      • Hand Crank is mounted on Side of Unit
    • Manually-Adjusted Height Option w/ Leg Pins
  • Standard Sizes:
    • We are the manufacturer - Feel free to specify your custom dimension requirements
      above or choose from the following...
    • "A" - 48", 60" & 72" Width (Right-to-Left) - Visit our Large Table page for more sizes...
      • Minimum Top/Unit Widths (Required to Accommodate Hydraulic System):
        • Electric Motor Hydraulic System:
          • 6" Lift - 28" Min. Width
          • 8" Lift - 30" Min. Width
          • 10" Lift - 32" Min. Width
          • 12" Lift - 34" Min. Width
          • 14" Lift - 36" Min. Width
          • 16" Lift - 38" Min. Width
        • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
          • 6" Lift - 15" Min. Width or Depth
          • 8" Lift - 17" Min. Width or Depth
          • 10" Lift - 20" Min. Width or Depth
          • 12" Lift - 22" Min. Width or Depth
          • 14" Lift - 24" Min. Width or Depth
          • 16" Lift - 26" Min. Width or Depth
    • "B" - 30" & 36" Depth (Front-to-Back)
    • "C" - 30" (Sitting "Desk" Height), 34" (ADA/Accessible Height), 36" (Standing Tasks)
  • 1,000 pound capacity - 4 Leg Unit (Less Weight of Unit)
  • 1,500 pound capacity available - 4 & 6 Leg Unit (Less Weight of Unit)
  • 3,000 pound capacity - 4 Leg Unit (Less Weight of Unit) - Available 12" Lift Only w/ Motor
  • Fully-Welded Tubular Steel Frame
  • See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables...
  • Durable Tubular Steel Table Legs w/ Leveler Feet.
  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD /
    Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More...

    This model is part of the RDM Industrial workbenches standard models.
