STEP ONE

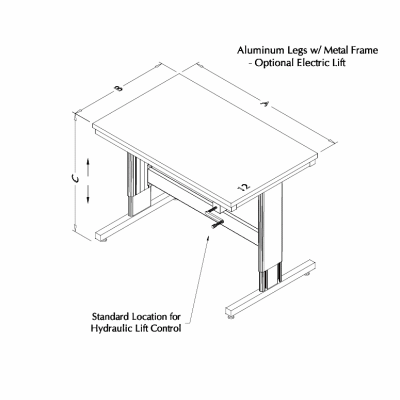

Table Model i-107P - Ergonomic ADA Lift Table / Desk...



M O R E    I M A G E S    B E L O W    . . .

Light (500# max.), Standard (1,000# max.), Medium (1,500# max.)
Manual Hand Crank or Electric Motor-Driven models available...

Ergonomic ADA Lift Table
Great for Laboratory & Cleanroom Use !!


Available with Hand Crank or Electric Motor & Switch Lift Controls

Also take a look at i-107P-BOOM (Same as Above w/ Overhead Boom)
& A-107P (Flat Lift Table w/ Four Legs)

- More Lift Table Styles Shown Below -

Dimensions:
A (Width)
B (Depth)
C (Start Height)
    - Lowest Standard Height
    - 24.5 Lowest Height
    - Casters add 3"

12" Lift Range
Lift Control:



Note:
Hand Crank Folds beneath top surface.

Non-Hydraulic (Special)
Safety Stop Valves $$ - Used to lock legs in place if hydraulic line is cut.


Environment:


Top & Frame
Finish/Colors:
See Samples RDM Industrial Products




Quantity Req'd:


Proceed to STEP 2 below
for Optional Accessories:
Proceed to Submit
Lift Control Options (Select at Left)
RDM Industrial Products RDM Industrial Products RDM Industrial Products RDM Industrial Products RDM Industrial Products
Folding Hand Crank Extended  Folding Hand Crank Retracted   Basic Up/Down Switch for Electric Motor 3-Position Memory Switch with Up/Down Foot Pedal Switch for Elec. Motor

Click Here for More Table Styles... (Workbench Photo Gallery)
Click Here for Sample Drawing
Print & Fax to 408-945-8433
Adobe Systems, Inc. (Acrobat .pdf)


A Few More Sample Configurations of this Workstation...
Ergonomic Lift Table with Overhead Accessory Boom  Microscope Table with Recessed Seating Area on Top Ergonomic Lift Table with Tilting Top  Ergonomic Lift Table with Added Leg Height
Model i-107P-BOOM
Lift Table w/
Overhead Accessory Boom
(Many Options)
(Take me There)
Model i-107P-MICRO
Ergonomic Microscope Tables
(Many Top Configurations)
(Take me There)
Model i-107P-500-TILT-MAN
Shown With Tilt Top
(Light to Medium Duty)
(Quote Request This Page)
Model i-107P-500-EXT
Extended Height Model
(Light to Medium Duty)
(Quote Request This Page)
Other Adjustable Table Configurations...
Lift Table w/ Hand Crank & Casters Ergonomic Lift Table  Hydraulic Lift Platform / Lift Table  Aluminum Frame Lift Tables
Model A-107P
Lift Table - 4 or more Legs
(Standard to Heavy Duty)
(Take me There)
Model i-107P-500
Ergonomic ADA Tables
500 lb Capacity
(Light to Medium Duty)
(Quote Request This Page)
Model LP-107P
Lift Platform / Lift Table
(1,000 & 1,500 lb capacities)
9.5" at Lowest + 6-16"
(Take me There)
Model A-107P-AL
Aluminum Lift Table
Shown with & Without Top
(Take me There)
- Totally "Customizable" -


Click Here for More... (Workbench Photo Gallery)
Also take a look at A-107P (Lift table)





RDM Industrial Products - Enter Required Information at Upper Left...
  Standard Table Features...
  • Ergonomic ADA Table with Height Adjustability (Options)
    • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
      • Switch for Electric Motor Unit can be positioned anywhere on the unit...
      • Hand Crank is mounted below work surface (Front or Side)
    • Manually-Adjusted Height Option w/ Leg Pins - See Table Model A-109P...
  • Standard Sizes:
    • We are the manufacturer - Feel free to specify your custom dimension requirements
      above or choose from the following...
    • "A" - 48", 60" & 72" Width (Right-to-Left)
      • Minimum Top/Unit Widths (Required to Accommodate Hydraulic System):
        • Electric Motor Hydraulic System:
          • 12" Lift - 34" Min. Width
        • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
          • 12" Lift - 22" Min. Width or Depth
    • "B" - 30" & 36" Depth (Front-to-Back)
    • "C" - 30" (Sitting "Desk" Height), 34" (ADA/Accessible Height), 36" (Standing Tasks)
  • 500 pound capacity - 2 Leg Unit (Less Weight of Top) - 1000 pound capacity available as option
  • Fully-Welded Tubular Steel Top Frame with Telescoping Aluminum Legs & Steel Base Legs
  • See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables...
  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD /
    Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More...
  • Many Styles Available, Including:
    • Laboratory with Chemical Resistant Solid Surface Tops
    • ESD / Static Control with Grounding Ports & Hardware
    • Cleanroom, for use in Class 100 or Less
    • Heavy Manufacturing with Solid Steel Decks
    • General Use with Standard HPL Laminated Tops Channeled rear legs accept many workbench accessories...
  • Optional Workstation Accessories:
    • Flat Monitor Stand & Keyboard Tray
    • Fixed or Articulating Bin Panel / Bin Rails
    • Utility & File Drawers
    • Storage Cabinets
    • Power Outlet Strip(s)
    • Tool Trolley w/ Balancer(s)
    • ...and many more - please see below...
  • This model is part of the RDM Industrial workbenches standard models.
