RDM - WorkBench i-107P-BOOM (Fully Adjustable Lift Table w/ Overhead Accessory Boom)

STEP ONE

Table Model i-107P-BOOM - Our Most Flexible Lift Table with Overhead Accessory Boom...



M O R E    I M A G E S    B E L O W    . . .

Light (500# max.), Standard (1,000# max.), Medium (1,500# max.)
Manual Hand Crank or Electric Motor-Driven models available...

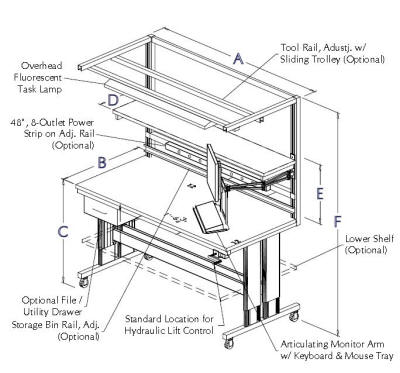

I-107P-BOOM - Lift Table with Overhead Boom
Great for Laboratory & Cleanroom Use !!


Available with Hand Crank or Electric Motor & Switch Lift Controls
Also take a look at A-107P (Flat Lift Table with Four Legs)
Also take a look at i-107P (Flat Lift Table w/ Recessed Legs)
- More Lift Table Styles Shown Below -

Lift Control Options (Select at Left)
RDM Industrial Products RDM Industrial Products RDM Industrial Products RDM Industrial Products RDM Industrial Products
Folding Hand Crank Extended  Folding Hand Crank Retracted   Basic Up/Down Switch for Electric Motor 3-Position Memory Switch with Up/Down Foot Pedal Switch for Elec. Motor

Click Here for More Table Styles... (Workbench Photo Gallery)
Click Here for Sample Drawing
Print & Fax to 408-945-8433
Adobe Systems, Inc. (Acrobat .pdf)
Dimensions:
A (Width)
B (Depth)
C (Start Height-Main)
   - Lowest Standard Height
    - 24.5 Lowest Height
    - Casters add 3"
Optional Shelf:
D (Depth-Upper)
E (Height-Upper)
F=74" Standard

12" Lift Range
Lift Control:



Note:
Hand Crank Folds beneath top surface.

Non-Hydraulic (Special)
Safety Stop Valves $$ - Used to lock legs in place if hydraulic line is cut.

Environment:


Top & Frame
Finish/Colors:
See Samples RDM Industrial Products




Quantity Req'd:


Proceed to STEP 2 below
for Optional Accessories:

 Proceed to Submit


A Few Sample Configurations of this Workstation...
Ergonomic Lift Table with Overhead Accessory Boom  i-Frame Adjustable Height Lift Table i-Frame Ergonomic Lift Table with Overhead Accessory Boom
- Totally "Customizable" -



RDM Industrial Products - Enter Required Information at Upper Left...
  Standard Table Features...
  • Durable Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
  • Adjustable-Height Main Work Surface with Telescoping Aluminum Legs
  • Adjustable-Height Overhead Shelf for Added Surface Space / Storage
  • Adjustable Fluorescent Light Boom (Front-to-Back)
  • Standard Sizes:
    • We are the manufacturer - Feel free to specify your custom dimension requirements
      above or choose from the following...
    • "A" - 48", 60" & 72" Width (Right-to-Left)
    • "B" - 30" & 36" Depth (Front-to-Back)
    • "C" - 30" (Sitting "Desk" Height), 34" (ADA/Accessible Height), 36" (Standing Tasks)
    • "D" - 12" to 18"
    • "E" - 18" to 24" (Add 3 1/2" to your under-shelf clearance requirement)
    • "F" - Typically Same as "B"
  • Fully-Welded Tubular Steel Frame with Aluminum Legs
  • See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables...
  • Channeled rear legs accept many workbench accessories...
  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD /
    Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More...
  • Many Styles Available, Including:
    • Laboratory with Chemical Resistant Solid Surface Tops
    • ESD / Static Control with Grounding Ports & Hardware
    • Cleanroom, for use in Class 100 or Less
    • Heavy Manufacturing with Solid Steel Decks
    • General Use with Standard HPL Laminated Tops Channeled rear legs accept many workbench accessories...
  • Optional Workstation Accessories:
    • Flat Monitor Stand & Keyboard Tray
    • Fixed or Articulating Bin Panel / Bin Rails
    • Utility & File Drawers
    • Storage Cabinets
    • Power Outlet Strip(s)
    • Tool Trolley w/ Balancer(s)
    • ...and many more - please see below...
  • This model is part of the RDM Industrial workbenches standard models.
