Lift Tables At RDM - Adjustable Tables - A107P


Link to Main



O  R  D  E  R  /  Q  U  O  T  E    W  E  B    F  O  R  M

STEP ONE  Fill in basic information at left required to process your request.
STEP 2  Select optional features that you would like to add to your unit(s).
STEP 3  Fill in your contact information at the bottom of this page.

STEP ONE

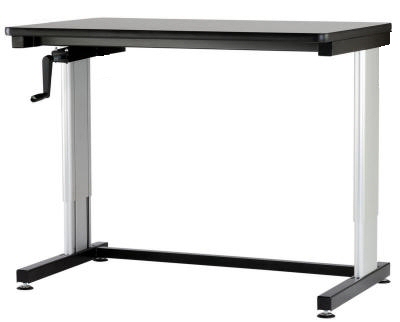

Lift Table Model A-107P - Our Ergonomic Adjustable Height Table...
    - More Adjustable-Height Table Styles Shown Below...



M O R E    I M A G E S    B E L O W    . . .

Light (500# max.), Standard (1,000# max.) & Medium (1,500# max.)
Manual Hand Crank or Electric Motor-Driven models available...
Adjustable Height Table
Great for Laboratory & Cleanroom Use !!


Click Here for
Full Stainless Steel Model
Available with Hand Crank or Electric Motor & Switch Lift Controls
Also take a look at i-107P-BOOM (Recessed Legs w/ Overhead Boom)
Also take a look at i-107P (Flat Lift Table w/ Recessed Legs)
- More Lift Table Styles Shown Below -


Lift Control Options (Select at Left)
RDM Industrial Products RDM Industrial Products RDM Industrial Products RDM Industrial Products Hydraulic Lift T-Handle RDM Industrial Products
Folding Hand Crank Extended
(500-1000 lb systems)
Folding Hand Crank Retracted
(500-1000 lb systems)
Basic Up/Down Switch for Electric Motor
(500-1500 lb systems only)
3-Position Memory Switch with Up/Down
(500-1500 lb systems only)
Manual
T-Handle Crank
(1500 lb systems)
Foot Pedal Switch for Elec. Motor
(500-1500 lb systems only)


Click Here for More Table Styles... (Workbench Photo Gallery)
Click Here for Blank Drawing
Print & Fax to 408-945-8433
Adobe Systems, Inc. (Acrobat .pdf)
Dimensions:
A (Width)
B (Depth)
C (Starting Height *)
* See notes below for Minimum Starting Heights.



Lift Control:


Note:
Hand Crank Folds beneath top surface.



Non-Hydraulic (Special)
Safety Stop Valves $$ - Used to lock legs in place if hydraulic line is cut.

Environment:


Top & Frame
Finish/Colors:
See Samples RDM Industrial Products




Quantity Req'd:


Proceed to STEP 2 below
for Optional Accessories:

Proceed to Submit

Caster Options for Our Lift Tables...
Adjustable Height Table with Part Time Casters   Adjustable Height Table with Full Time Casters Adjustable Height Table with Full Time Casters
Model A-107P-CAST-PT
Part Time Casters
Casters Raise with Frame
(Most Popular)
Unit CANNOT be moved
in Raised Position
  Model A-107P-SS-CAST-FTFRM
Full Time Casters on Lower Frame
(Best Full-Time Caster Option)
Unit SHOULD be moved in
Lowered Position Only
Model A-107P-SS-CAST-FTLEG
Full Time Casters on Leg Ends
(Not Recommended)
Unit MUST be moved in
Lowered Position Only
A Few Sample Configurations of this Workstation...
Lift Table w/ Hand Crank & Casters Adjustable Height Stainless Steel Lift Table w/ Hand Crank Adjustable Height Lift Table with Solid Maple Top Adjustable Height Stainless Steel Hydraulic Lift Table w/ Dual Electric Lift Tops
Model A-107P-CAST
Ergonomic ADA Table w/
Optional Casters (Wheels)
and no lower cross rail
(Quote Request This Page)
Model A-107P-SS
Stainless Steel Lift Table
with Optional Lower Shelf
(Take me There)
Model A-107P-BBLK
Adjustable Height Table w/ Optional
Butcher Block Top & Full Lower Shelf
(Quote Request This Page)
Model A-107P-SS-CUST
Custom, Adjustable Height
Dual Platform Table
(Take me There)
Other Adjustable Table Configurations...
Aluminum Frame Lift Tables Ergonomic Lift Table Hydraulic Lift Platform / Lift Table Adjustable Table with Overhead Accessory Boom
Model A-107P-AL
Aluminum Lift Table
Shown with & Without Top
(Take me There)
Model i-107P
Ergonomic ADA Tables
(Light to Medium Duty)
(Take me There)
Model LP-107P
Lift Platform / Lift Table
(1,000 & 1,500 lb capacities)
9.5" at Lowest + 6-16"
(Take me There)
Model i-107P-BOOM
Lift Table w/
Overhead Accessory Boom
(Many Options)
(Take me There)
- Totally "Customizable" -




- Enter Required Information at Upper Left...
  Standard Lift Table Features...
  • Ergonomic Table Height Adjustability (Options)
    • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
      • Switch for Electric Motor Unit can be positioned anywhere on the unit...
      • Hand Crank is mounted below work surface (Front or Side)
    • Manually-Adjusted Height Option w/ Leg Pins
  • Standard Sizes:
    • We are the manufacturer - Feel free to specify your custom dimension requirements
      above or choose from the following...
    • "A" - 48", 60" & 72" Width (Right-to-Left) - Visit our Large Table page for more sizes...
      • Minimum Top/Unit Widths (Required to Accommodate Hydraulic System):
        • Electric Motor Hydraulic System:
          • 6" Lift - 28" Min. Width
          • 8" Lift - 30" Min. Width
          • 10" Lift - 32" Min. Width
          • 12" Lift - 34" Min. Width
          • 14" Lift - 36" Min. Width
          • 16" Lift - 38" Min. Width
        • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
          • Hand Crank folds beneath work surface...
          • 6" Lift - 15" Min. Width or Depth
          • 8" Lift - 17" Min. Width or Depth
          • 10" Lift - 20" Min. Width or Depth
          • 12" Lift - 22" Min. Width or Depth
          • 14" Lift - 24" Min. Width or Depth
          • 16" Lift - 26" Min. Width or Depth
    • "B" - 30" & 36" Depth (Front-to-Back)
    • "C" - Minimum Starting Height Varies, Depending Upon Lift Range Used:
      • 6" Lift System - 16" Minimum Starting Height
      • 8" Lift System - 18" Minimum Starting Height
      • 10" Lift System - 20" Minimum Starting Height
      • 12" Lift System - 22" Minimum Starting Height
      • 14" Lift System - 24" Minimum Starting Height
      • 16" Lift System - 26" Minimum Starting Height
      • 20" Lift System - 30" Minimum Starting Height
  • 1,000 pound capacity lift system - 4 Leg Unit (Less Weight of Unit)
  • 1,500 pound capacity lift system available w/ electric motor - 4 & 6 Leg Unit (Less Weight of Unit)
  •   - Non-Toxic, Food-Grade Hydraulic Fluid for above systems...
  • 3,000 pound capacity lift system available w/ electric motor - 4 Leg Unit (Less Weight of Unit) - Available 12" Lift Only w/ Motor
  •  - Traditional Hydraulic Fluid for above (Food Grade available as option)
  • 6,000 pound capacity - 4 Leg Unit (Less Weight of Unit) - Available in 12"-30" Lift Ranges
  •  - Traditional Hydraulic Fluid for above (Food Grade available as option)
  • 20,000 pound capacity lift system available w/ electric motor - 4 Leg Unit (Less Weight of Unit) - Available 12" Lift Only w/ Motor
  •  - Traditional Hydraulic Fluid for above (Food Grade available as option)
  • Durable Fully-Welded Tubular Steel Frame
  • See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables...
  • UL approved - Lift Systems with Electric Motors are UL listed (Required for Units w/ Electrical Components).
  • CSA approved - Lift Systems with Electric Motors are CSA Certified (Required for Units w/ Electrical Components).
  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD /
    Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More...
  • Many Styles Available, Including:
    • Laboratory with Chemical Resistant Solid Surface Tops
    • ESD / Static Control with Grounding Ports & Hardware
    • Cleanroom, for use in Class 100 or Less
    • Heavy Manufacturing with Solid Steel Decks
    • General Use with Standard HPL Laminated Tops Channeled rear legs accept many workbench accessories...
  • Optional Workstation Accessories:
    • Flat Monitor Stand & Keyboard Tray
    • Fixed or Articulating Bin Panel / Bin Rails
    • Utility & File Drawers
    • Storage Cabinets
    • Power Outlet Strip(s)
    • Tool Trolley w/ Balancer(s)
    • ...and many more - please see below...
  • This model is part of the RDM Industrial workbenches standard models.


We also offer a wide range of Material Handling Lifts / Lift Tables...   Pneumatic Lifts

A Few Sample Configurations of this Workstation...
Lift Table w/ Hand Crank & Casters
Standard Lift Table with
Part-Time Casters
Lift Table with Solid Maple Top
Lift Table with
Full Lower Shelf
Stainless Steel Lift Table w/ Hand Crank
Stainless Steel Lift Table
with Full Lower Shelf
Aluminum Frame Lift Tables
Aluminum Lift Tables
Large Lift Table with Full Time Casters
Large Lift Table with
Full Time Caster Frame
RDM Industrial Products
Oversized Lift Table with
Dual-Stage Lift System

- Many More Lift Table Styles Available -
Ergonomic Lift Table with Tilting Top RDM Industrial Products RDM Industrial Products Ergonomic Lift Table with Overhead Accessory Boom
Visit our Main Tables / Workstations Where you can Select a
Specific Style of Table and add Lift Capability as an Option.
